Jawa outfit

Websites visited before and while working on the costume :

http://www.kraytclan.com
http://www.td8733.com/Jawas.html
http://www.partsofsw.com/
http://outpost42.dr-maul.com/forums

Reference picture for this costume :

001

Robe

The most difficult part is to find the appropriate material to make the robe. Fisrt, I thought it was the same as the one used to make the old big coffee bags, but taking a close look, you clearly see some sort of linear pattern on the material.

002

After searching through the Internet (especially the websites mentioned at the beginning of this page) it turned out that it would be very similar to monk clothe.
It is possible to order such material from Internet but I didn’t want to buy it without being able to see it with my eyes (I’ve been disappointed quit a few times !!).
I finally went for some sort of gunny material exactly the perfect brown and aspect found in my favourite fabric store.

002-1

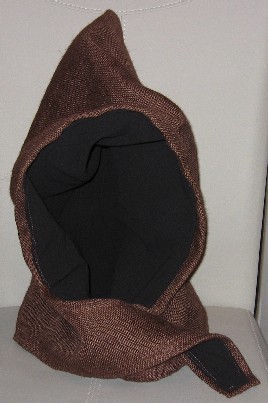

For the pattern, I followed TD8733.com tutorial. Inside the hood I put a smooth black (but cheap) material to match the head which has to be completely black except for the eyes. Actually, the entire inside of the robe has been covered with this black material because the feel of gunny on the skin is not very enjoyable (not that I plan to be naked underneath the costume, I swear).

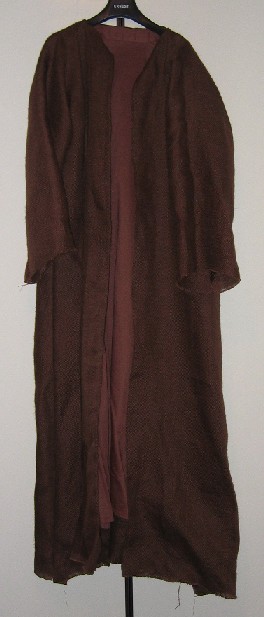

The result :

002-2

002-3

The eyes

Depending on what picture you’re looking at, the size of Jawa’s eyes considerably changes from tiny to very big !

004

005

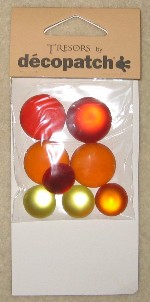

I decided to stay somewhere in the middle with these orange plastic decorative stones that I found again in my favourite fabric store (originally, they’re to be glued on clothes for fun).

006

One side of these orange parts is rounded and the other is flat but metallized so I sanded the metallization off to make them translucent.

007

To make those eyes shine in the dark, I use two white LED and to get a better diffusion of the light, I cut the top off and completely sanded the LED.

008

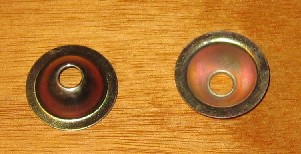

To keep the LED right behind the orange plastic stone, I used this little plumber accessory (originally used to fix pipes on walls) :

009

010

Sanded and painted black, I drilled two holes for the wires of the LED to come out.

011

012

013

Eyes of the Jawas are lower than ours which is good for the people under the costume who can actually see in front of him when walking !

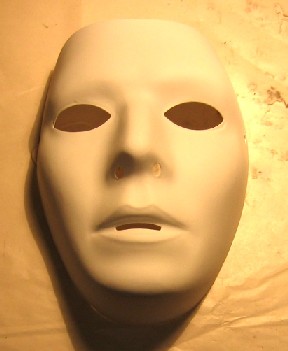

The two little plumber accessories with the LED inside are strongly attached on a simple mask using rivets. The bottom of the mask has been cut off because it can get really hot under.

014

015

016

017

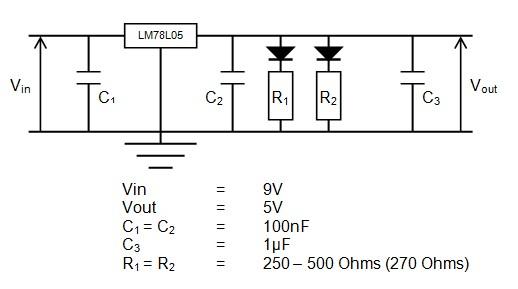

To light up the two LED I use the same power supply than in my Vador belt boxes : LM78L05 chipset and 9V battery according to this scheme :

018

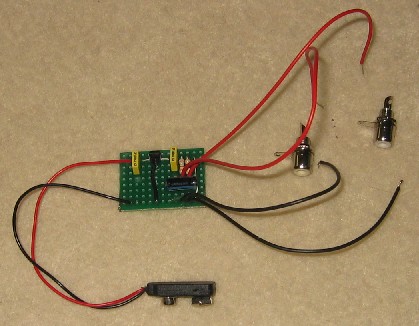

I’ve choosen RCA plugs to connect the two LED to the power supply so I can easily unplug it when not in use.

019

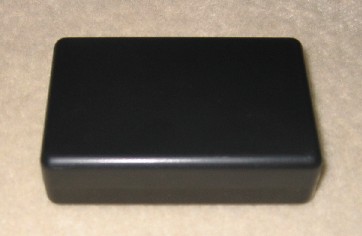

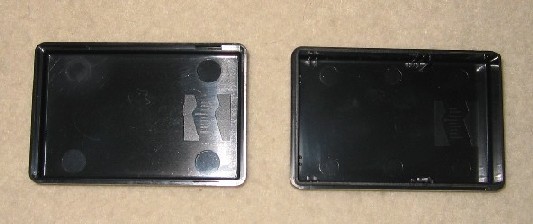

Once everything wired, I found a small black ABS box at Selectronic.com to put the electronic in.

020

021

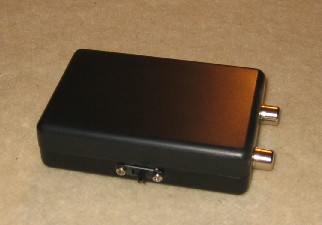

And here is the power supply :

022

023

Shoes

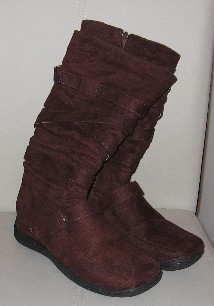

Just because you don’t see Jawa’s feet doesn’t mean you can wear red high heels lady shoes (this is part of your private life). To match the robe, my wife found those cheap boots :

022-2

Gloves

Jawa’s hands are black so a pair of black gloves will do fine.
On a few pictures, you can see their forearms which seem to be quit hairy !

025

Maybe I’ll find something close enough in a joke shop. I’ll check that later.

Bandoulières

026

The first shoulder strap, the one with 5 pouches on the front that can be either black or brown, comes from the British army during the Second World War. It’s a model produced between 1903 and 1908 but which has been used many years after that.

The second shoulder strap is a simple black or brown belt which is used to attach a holster (for either a blaster or an ion gun) and a black triple pouch which also comes from Second World War but from the German army. It was used originally to hold 3 Mauser 98K rifle magazines.

I found those products at http://www.militaryantiquesmuseum.com/

MORE TO COME !!
